KK BATON-6616

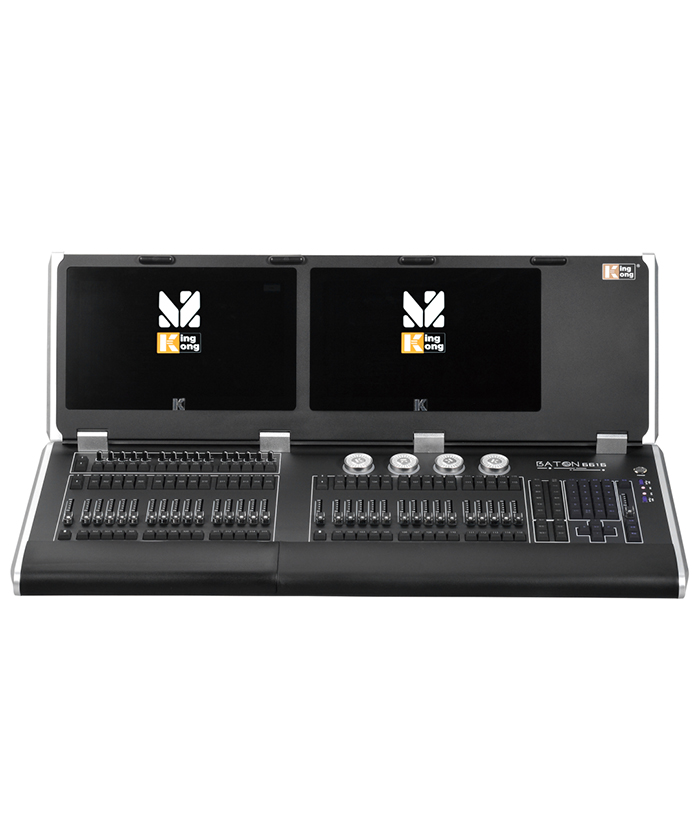

BATON-6616

Technical Parameters:

● Samsung DDR4 Memory

● ASUS Main board, 120G Kingston SSD, 4G Running memory

● I3-9000 Processor

● 2 BOE  Medical Grade 15.6-inch Capacitive Touch Screens, 80% higher sensitivity than traditional resistive screens

● Linux operating system

● 8192 Channel, 16 DMX512 Output, 3Pin or 5Pin. Can Expand to 64 Output by ArtNet.

● Built-in Multiple Language, English&Chinese can Switch

● With 3 USB Port, Convenient for multiple data input and output at the same time

● 2 Audio Ports

● 6000 Fixtures

● 600 Fixture Groups

● 1800 Materials, Divide into 9 Type

● 2700 Playback

● Can run 65 Playback at Same Time

● Built-in 43 Shape and 31 Curve Effect

● 6 Fan Mode, can Edit by self

● 400 Show

● Shape Grouping, provide more programming effect

● Special dialog, Can quickly call colors

● Vector bitmap,Simulate site layout emissions

● Each working window linearly scalable

● With Built-in Ups

● Built-in Music Player

● Support graffiti handwriting naming function

● XMAX Library. Can write on Console or Editor on Computer

● Support ArtNet

● virtual keyboard Support multi-language
