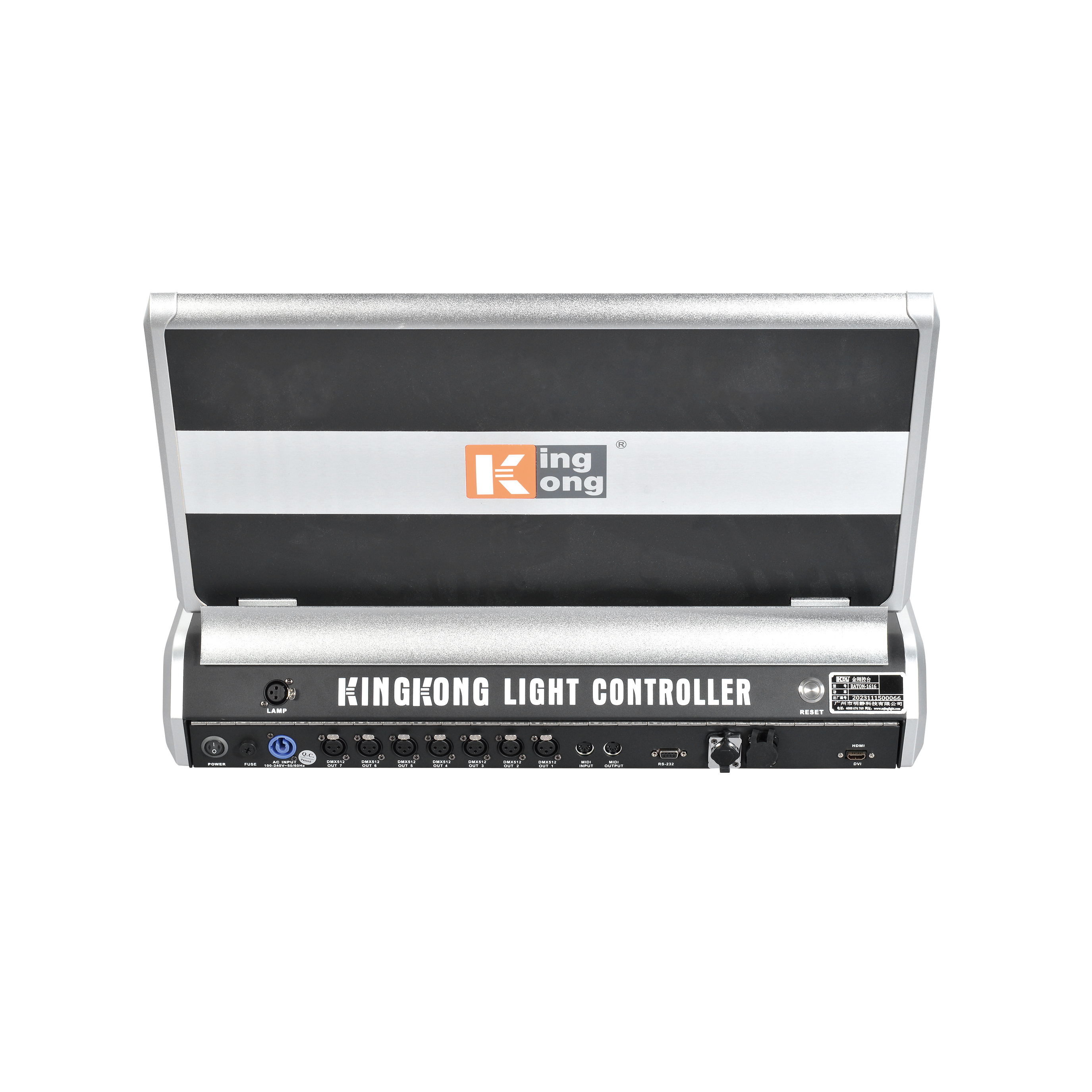

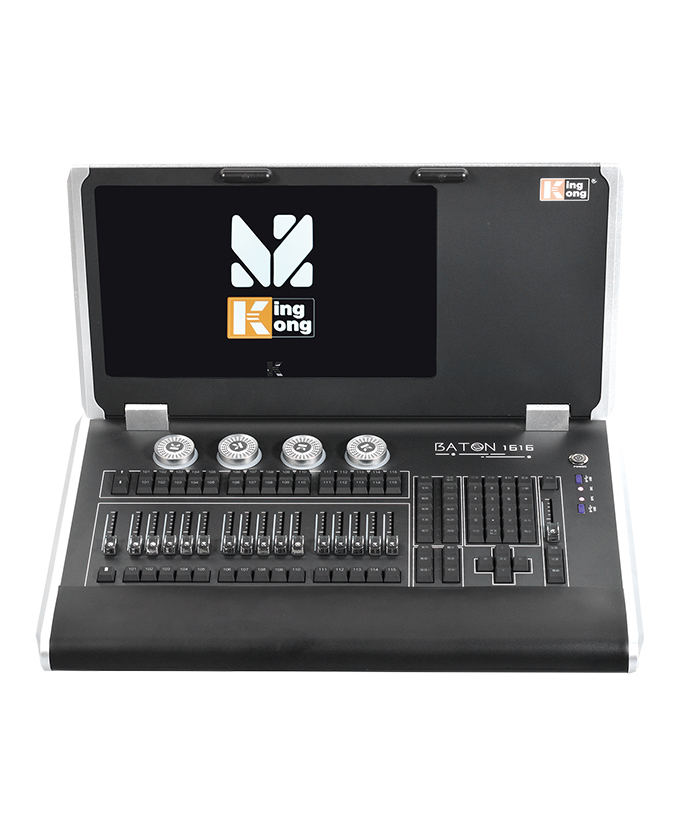

BATON-1616

BATON-1616

Technical parameters:

● Have independent intellectual property rights, have appearance patents, computer copyright registration certificates, integrated circuit design certificates, etc.

● The operating system is customized and developed based on linux, and the transmission is more real-time

● i3 9th generation processor; "Customizable", Samsung DDR4 memory module, ASUS motherboard; 120G Kingston SSD, 4G running memory

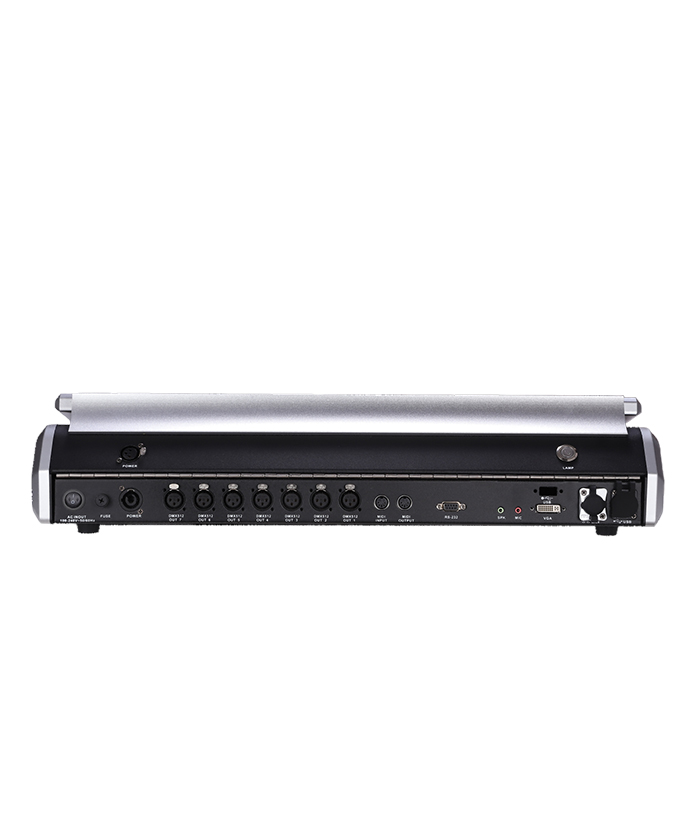

● 7 DMX output ports and 3,584 DMX512 channels. Scalable to 32 DMX outputs, 16384 DMX channels

 The touch screen is BOE medical grade, with a 15.6-inch capacitive screen, which is 80% more sensitive than the traditional resistance screen without delay

● Built-in multilingual, Chinese and English can be switched at will

● There are 6,000 lamps and lanterns keys, and the maximum number of lamps and lanterns can be matched.

● It can store up to 600 lamp sets

● Materials are divided into fifteen categories, each of which can store 200 materials. A total of 3000 materials can be stored

● 2700 scenes can be stored, of which there is no limit to the number of steps in multi-step scenes

● 20 scene windows can be run at the same time, 15 pushers can be run at the same time, and 30 can be expanded;

● Built-in 163 commonly used fixed graphics and 43 kinds of curve effects, which can be modified by parameters

● You can load 60 graphic effects at the same time and combine them at will

● There are 6 fan-shaped modes, and the fan-shaped effect can be modified through the skill dialog box

● 400 programs can be stored

● Special dialog box, which can quickly call color through color board, color fader or color preset

● Vector bitmap function, which simulates on-site layout and emission, makes the operation of lamps more accurate and convenient

 Each working window can be linearly scaled and saved as a view, which is convenient for continuous calling

● Paragraph operation method, which can run in sections according to attributes, time, graphics, etc.

● Built-in music player, easy to compile show and rehearsal record

● Support graffiti handwriting or custom naming

● Use XML format lamp library. Built-in light library editing software, which can be written directly on the control desk or on the computer

● Copy into the console (segment sets can be added to the lamp library to quickly select attribute features)

● Support wired ART-Net function (lighting simulator), which can be used for practice and simulation programming

● Support wireless ART-Net function, intelligent control, AI technology, and can use mobile phone or IPAD control remotely

 Dimensions: 66*46*14CM

Net weight: 22KG
