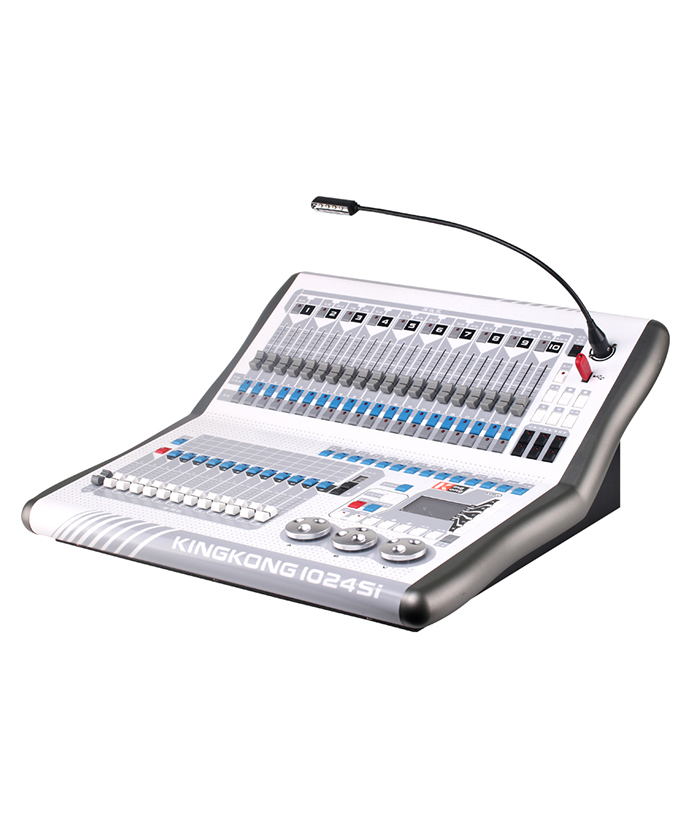

KK-1024SI

KK-1024SI

● DMXchannel:1024

● Power:AC100V-240V/50-60Hz

● ART-NET  Port:Support

● RDM:Support

● Channels  for each fixture:40 primary + 40  fine tune

● Library:R20 library  supported

● Time  control of Scenes:Fade in/out, LTP  slope

● Shape  generator:Shapes of Dimmer,  Pan/Tilt, RGB, CMY, Color, Gobo, Iris and Focus

● Master  slider:Global

● USB  Memory:FAT32 supported

● Fixture:120

● Dimmer:120

● Built-in  shape:227

● Palette:100

● Program  to record:100

● Playback:120

● Playbacksto  run simultaneously:12

● Scene  steps:600

● Shapes  for each Scene:5

● Shapes  to run simultaneously:10

● LCD  display with back light:Support

● Bilingual  operation:Support

● Scene  and dimmer by slider:Support

● Swap  Scene:Support

● Flash  Scene:Support

● Re-patched  Fixture address:Support

● Swap  Pan/Tilt:Support

● Channel  slope modification:Support

● Reversed  channel output:Support

● Real  time blackout:Support

● Channel  value by wheel:Support

● Channel  value by slider:Support

● Dimmer  by slider:Support

● Net. Weight:11KG

● Weight in  Flight Case:15KG

● Weight in  Carton:26KG



● DMX512/1990 standard, maximum 1024 DMX control channels, two optically isolated signal outputs.

● Maximum control of 120 computer lights or 120 channels of dimming.

● Use the pearl lamp library (R20 format lamp library), and the lamp library can be written on the console.

● LCD display with backlight, the first Chinese and English display switchable interface. The panel is available in English and Chinese.

● Built-in graphic track generator with 227 built-in graphics for user-friendly graphics

● Add RDM bidirectional output, you can set the address code of the light in the console

● Added Art-net, built-in simulator function
