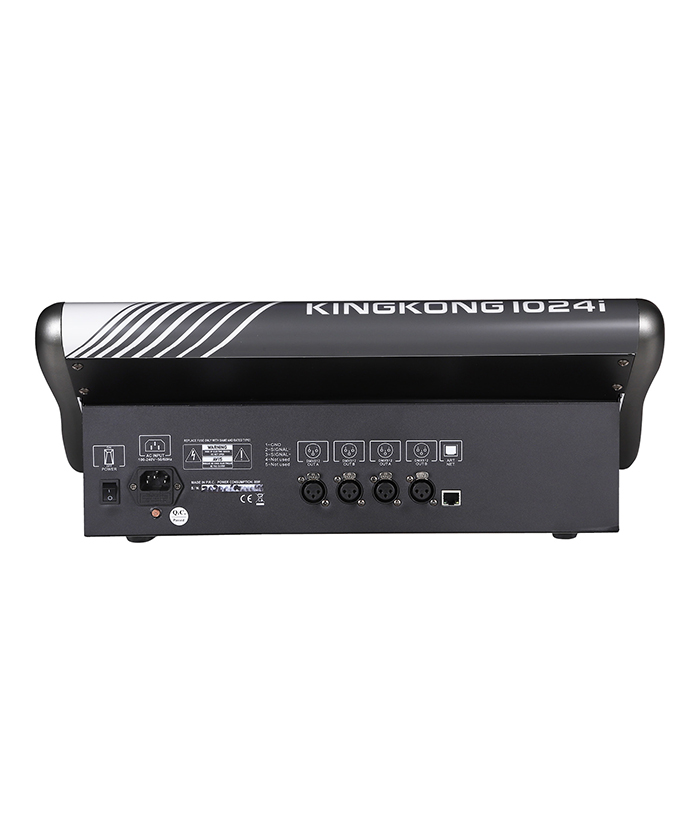

KK-1024I

KK-1024I

● DMX channel:1024

● Fixture:96

● Channels for each fixture:40 primary + 40 fine tune

● RDM:Support

● Art-net:Support

● Library:Avolite Pearl R20 library supported

● Re-patched Fixture address:Support

● Swop Pan/Tilt:Support

● Reversed channel output:Support

● Channel slope modification:Support

● Scene:60

● Scenes to run simultaneously:10

● Scene step:600

● Time control of scenes:Fade in/out, LTP slope

● Shapes for each scene:5

● Scene and dimmer by slider:Support

● Interlocked scene:Support

● Button controlled scene:Support

● Shape generator:Shapes of Dimmer, Pan/Tilt, RGB, CMY, Color,  Gobo, Iris and Focus

● Built-in Shape:227

● Shapes to run simultaneously:5

● Master slider:Global, playback, fixture

● Real time blackout:Support

● Channel value by wheel:Support

● Channel value by slider:Support

● Dimmer by slider:Support

● USB Memory:FAT32 supported

● Net. Weight:10KG

● Weight in  Carton:14KG

● Weight in  Flight Case:24KG


● DMX512/1990 standard, maximum 1024 DMX control channels, two optically isolated signal outputs.

● Maximum control of 96 computer lights or 96 channels of dimming.

● Use the pearl lamp library (R20 format lamp library), and the lamp library can be written on the console.

● Add RDM bidirectional output, you can set the address code of the light in the console

● Added Art-net, built-in simulator function
